Product Line Up
Pivot Door Closer
Door Closer PCD100 / PCD100S
PCD103W no stop（開放角度１５０度）
PCD103WS with stop（開放角度９０度）
[Function]
SIZE 56x182x32
Shaft center 58mm(From the wall 63mm)
Finish SUS HLF inish
Tolerance width 950mm
Tolerance weight 100Kg
Pivot Door Closer PCD100
Door Closer PCD100 / PCD100S
PCD100 no stop（開放角度１５０度）
PCD100S with stop（開放角度９０度）
[Function]
SIZE 68x186x40
Shaft center 55mm (From the wall 58mm)
Finish SUS HL Finish / MR Finish
Allowance glass thickness 8mm～13mm
Tolerance width 1000mm Within
Tolerance weight 100Kg Within
Top Patch Fitting – KD

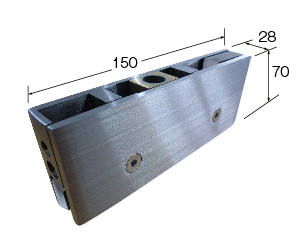

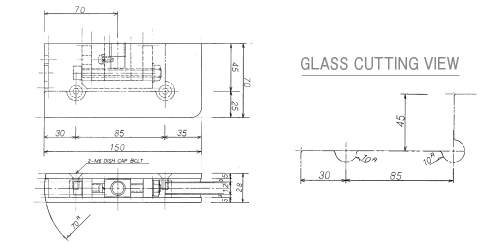

KD-2SN SUS HL ( MR ) [ L/R ]

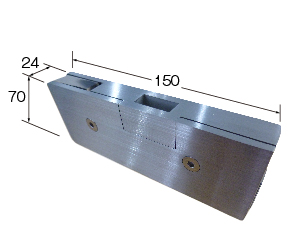

Bottom Patch Fitting

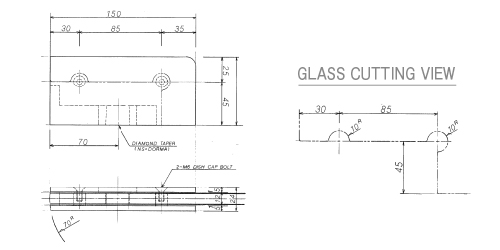

KD-4SN SUS HL ( MR ) [ L/R ]

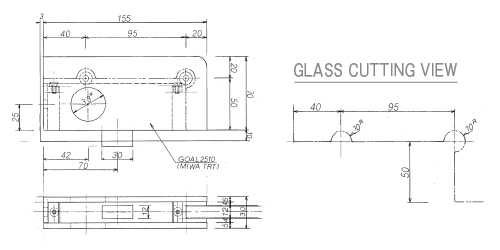

Lock Fitting

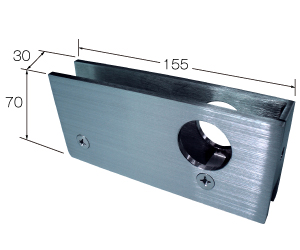

KDN-5SN SUS HL ( MR ) [ L/R ]
Center Lock
KDN-3G SUS HL ( MR ) [ L/R ]
Top Patch Fitting – KCC

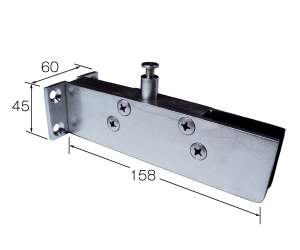

KCC-2SN SUS HL ( MR ) [ L/R ]

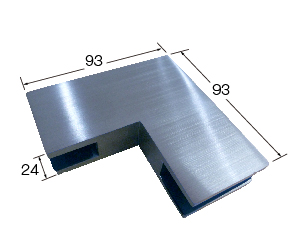

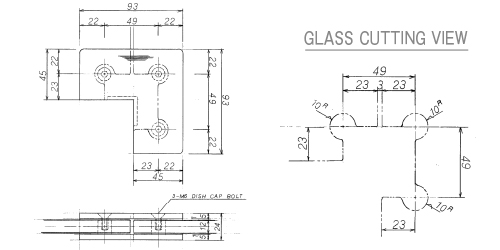

Top Patch Fitting – KCB
KCB-14S SUS HL ( MR ) [ L/R ]

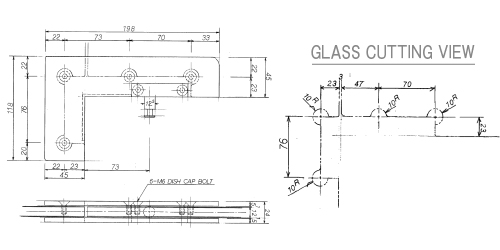

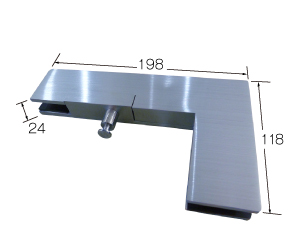

Top Patch Fitting – KCD
KCD-16SN SUS HL ( MR ) [ L/R ]
Door Stop Top Center Patch Fitting – KCB

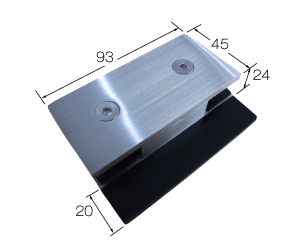

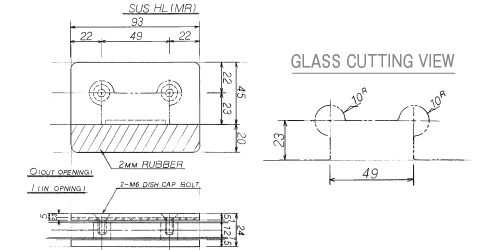

KCB-19S SUS HL ( MR ) [ IN.OUT ]
